Tri-axle, quad or quint? How many axles your dump truck needs, state by state

A quad can haul about 3 tons more than a tri-axle on one road and nothing more on the next. Two charts show where one more axle pays, and the most common dump truck setups in each state.

By Stanley JamesOct 25, 202610 min read

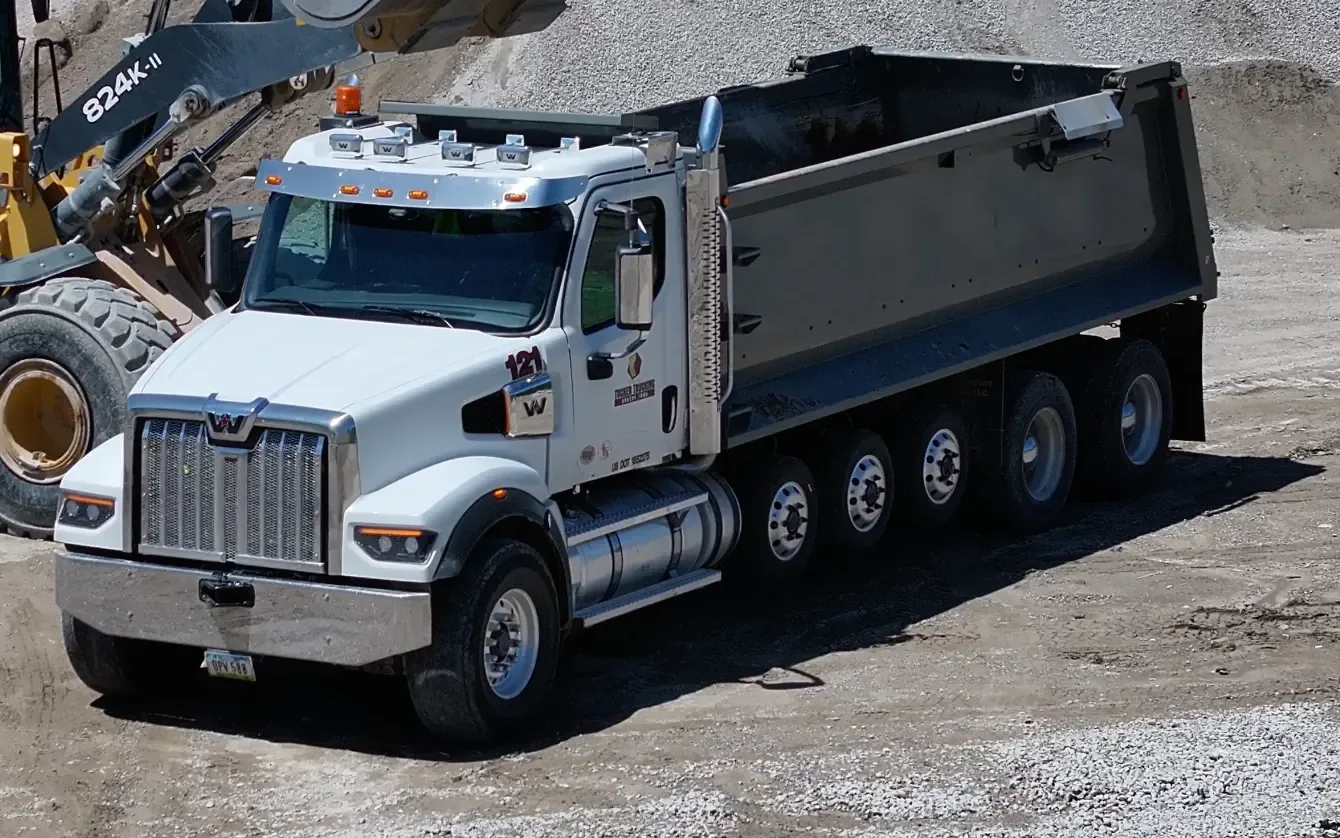

A wheel loader dumps aggregate into a white Western Star quint dump truck with a steer axle and five axles behind the cab at a quarry stockpile — A quint (a tandem drive plus three pushers) takes on aggregate at a stockpile. Whether all those axles pay depends on the state and the roads the truck runs.

Where one more axle pays

The chart compares a typical tri-axle and quad in each state. Blue means the quad hauls more per load; red means it hauls less, because it carries the extra axle’s weight with no added legal gross.

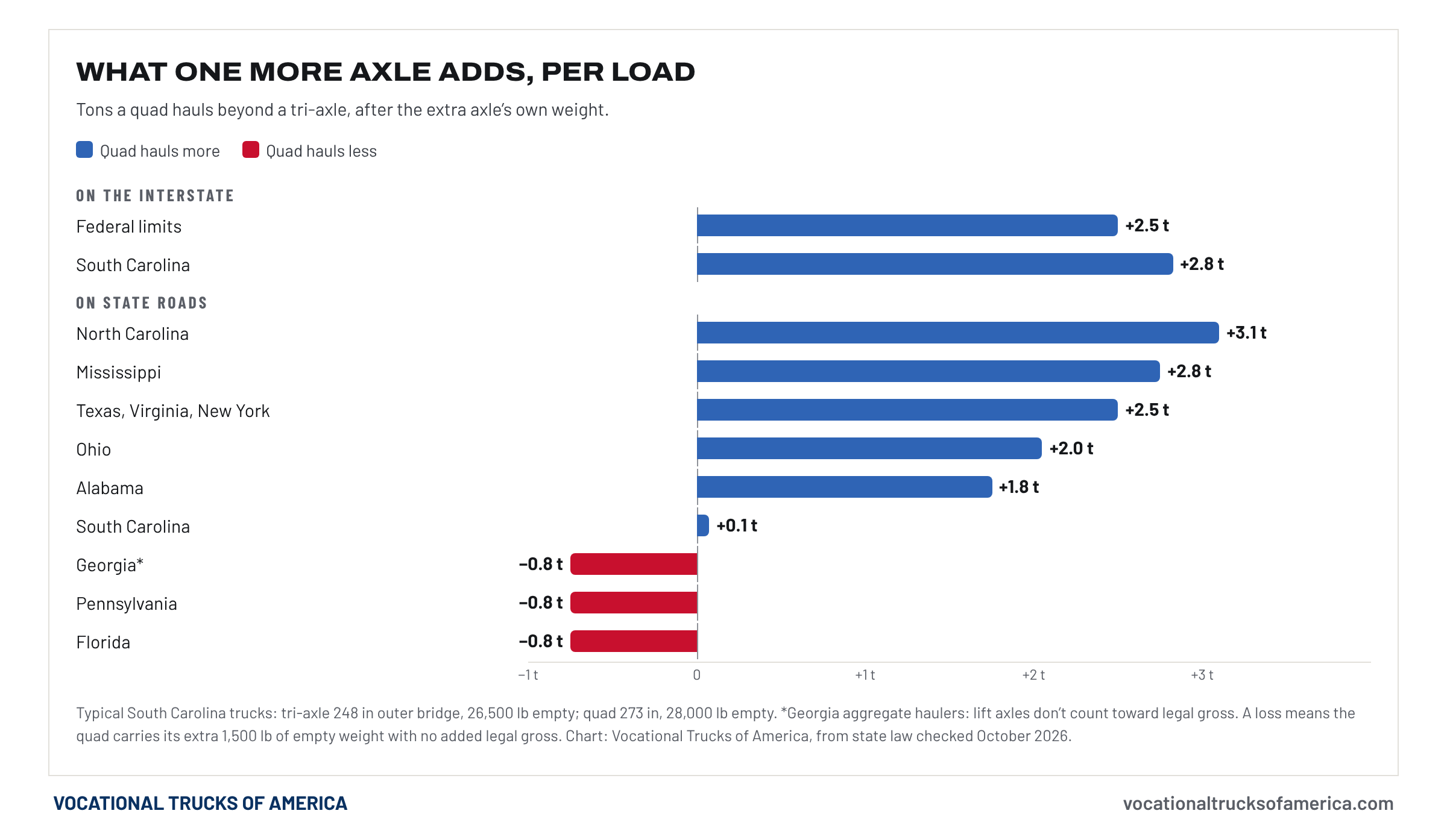

What one more axle adds, per load

Tons a quad hauls beyond a tri-axle, after the extra axle’s own weight.

Quad hauls moreQuad hauls less

On the Interstate

Federal limits+2.5 t

South Carolina+2.8 t

On state roads

North Carolina+3.1 t

Mississippi+2.8 t

Texas, Virginia, New York+2.5 t

Ohio+2.0 t

Alabama+1.8 t

South Carolina+0.1 t

Georgia*−0.8 t

Pennsylvania−0.8 t

Florida−0.8 t

−1 t0+1 t+2 t+3 t

Typical South Carolina trucks: tri-axle 248 in outer bridge, 26,500 lb empty; quad 273 in, 28,000 lb empty. *Georgia aggregate haulers: lift axles don’t count toward legal gross. A loss means the quad carries its extra 1,500 lb of empty weight with no added legal gross. Chart: Vocational Trucks of America, from state law checked October 2026.

The takeaway: if your loads run on the Interstate, or your state’s road table rewards more axles, a quad earns its keep. In South Carolina, Pennsylvania, Florida and Georgia, it doesn’t on state roads.

“A quad only makes sense if you work in an area where Interstate travel is routinely required for your routes.”
Stanley James, on spec’ing dump trucks in South Carolina

The most common dump truck setups

Federal survey data mostly shows the same pattern on the road: where the law rewards more axles, more trucks tend to have them. (VIUS 2021)

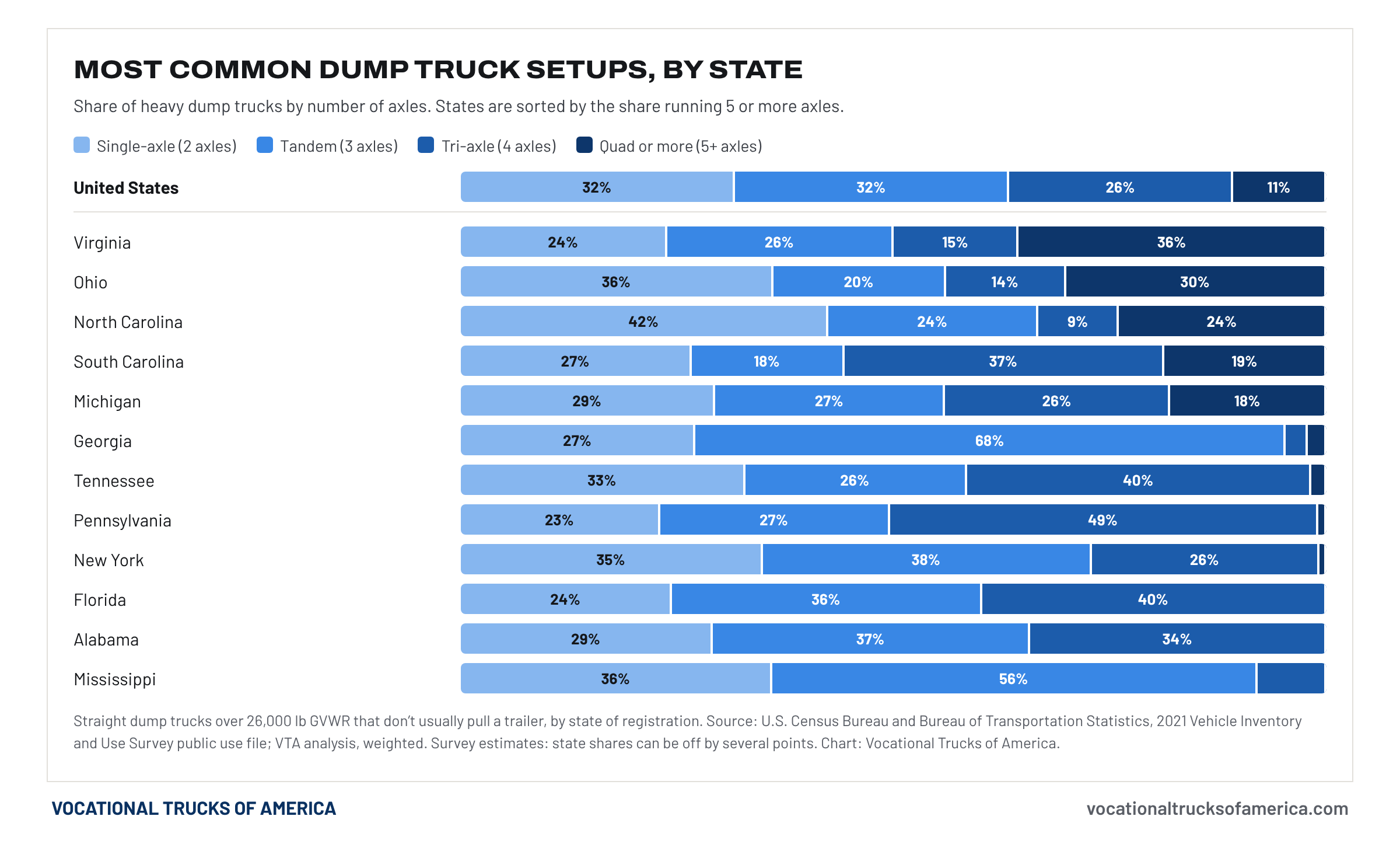

Most common dump truck setups, by state

Share of heavy dump trucks by number of axles. States are sorted by the share running 5 or more axles.

Single-axle (2 axles)Tandem (3 axles)Tri-axle (4 axles)Quad or more (5+ axles)

United States32%32%26%11%

Virginia24%26%15%36%

Ohio36%20%14%30%

North Carolina42%24%9%24%

South Carolina27%18%37%19%

Michigan29%27%26%18%

Georgia27%68%

Tennessee33%26%40%

Pennsylvania23%27%49%

New York35%38%26%

Florida24%36%40%

Alabama29%37%34%

Mississippi36%56%

Straight dump trucks over 26,000 lb GVWR that don’t usually pull a trailer, by state of registration. Source: U.S. Census Bureau and Bureau of Transportation Statistics, 2021 Vehicle Inventory and Use Survey public use file; VTA analysis, weighted. Survey estimates: state shares can be off by several points. Chart: Vocational Trucks of America.

Georgia: 68% of heavy dump trucks are tandems. Georgia doesn’t count lift axles toward legal gross.
Florida: almost none run 5 or more axles. A tri-axle already reaches the state’s 70,000 lb cap.
Pennsylvania: about half are tri-axles. A 4-axle and a 5-axle truck share one limit.
Virginia, Ohio and North Carolina: about a quarter to more than a third run 5 or more axles. Their state tables reward more axles.
Not just the law: Mississippi’s table rewards more axles, yet most of its dump trucks are tandems. Local work, roads and habits matter too.

See every state

Heavy dump trucks by number of axles, by state of registration (VIUS 2021)
State	2 axles	Tandem	Tri-axle	5+ axles	Sample
United States	32%	32%	26%	11%	3400 trucks surveyed
Alabama	29%	37%	34%	0%	51 trucks surveyed
Alaska	22%	74%	4%	0%	56 trucks surveyed
Arizona	—	—	—	—	Too few trucks in the survey sample
Arkansas	19%	20%	44%	17%	56 trucks surveyed
California	—	—	—	—	Too few trucks in the survey sample
Colorado	34%	61%	0%	5%	56 trucks surveyed
Connecticut	34%	14%	53%	0%	132 trucks surveyed
Delaware	29%	30%	40%	1%	105 trucks surveyed
District of Columbia	—	—	—	—	Too few trucks in the survey sample
Florida	24%	36%	40%	0%	45 trucks surveyed
Georgia	27%	68%	2%	2%	40 trucks surveyed
Hawaii	22%	34%	4%	41%	48 trucks surveyed
Idaho	29%	60%	7%	5%	81 trucks surveyed
Illinois	—	—	—	—	Too few trucks in the survey sample
Indiana	—	—	—	—	Too few trucks in the survey sample
Iowa	20%	35%	29%	16%	69 trucks surveyed
Kansas	31%	53%	7%	9%	41 trucks surveyed
Kentucky	41%	36%	21%	2%	103 trucks surveyed
Louisiana	—	—	—	—	Too few trucks in the survey sample
Maine	24%	49%	26%	1%	174 trucks surveyed
Maryland	27%	27%	43%	2%	129 trucks surveyed
Massachusetts	35%	37%	28%	0%	146 trucks surveyed
Michigan	29%	27%	26%	18%	62 trucks surveyed
Minnesota	34%	23%	21%	22%	89 trucks surveyed
Mississippi	36%	56%	8%	0%	43 trucks surveyed
Missouri	28%	55%	12%	5%	74 trucks surveyed
Montana	35%	35%	20%	10%	48 trucks surveyed
Nebraska	—	—	—	—	Too few trucks in the survey sample
Nevada	—	—	—	—	Too few trucks in the survey sample
New Jersey	37%	24%	38%	1%	77 trucks surveyed
New Mexico	43%	43%	13%	0%	48 trucks surveyed
New York	35%	38%	26%	1%	124 trucks surveyed
North Carolina	42%	24%	9%	24%	60 trucks surveyed
North Dakota	24%	34%	38%	4%	51 trucks surveyed
Ohio	36%	20%	14%	30%	90 trucks surveyed
Oklahoma	—	—	—	—	Too few trucks in the survey sample
Oregon	39%	30%	16%	15%	73 trucks surveyed
Pennsylvania	23%	27%	49%	1%	95 trucks surveyed
Rhode Island	35%	25%	39%	1%	72 trucks surveyed
South Carolina	27%	18%	37%	19%	73 trucks surveyed
South Dakota	29%	41%	19%	10%	41 trucks surveyed
Tennessee	33%	26%	40%	2%	54 trucks surveyed
Texas	—	—	—	—	Too few trucks in the survey sample
Utah	33%	27%	17%	23%	68 trucks surveyed
Vermont	25%	41%	33%	1%	158 trucks surveyed
Virginia	24%	26%	15%	36%	115 trucks surveyed
Washington	35%	21%	25%	19%	62 trucks surveyed
West Virginia	36%	24%	35%	5%	119 trucks surveyed
Wisconsin	26%	14%	17%	44%	110 trucks surveyed
Wyoming	37%	47%	14%	2%	48 trucks surveyed

Weighted VTA analysis of the 2021 Vehicle Inventory and Use Survey public use file: straight dump trucks over 26,000 lb GVWR that don’t usually pull a trailer. New Hampshire is not in the survey. States with fewer than 40 trucks in the sample are left blank. Download the data (CSV).

Tandem, tri-axle, quad, quint: what the names mean

Buyers name a dump truck by the axles behind the cab: two drive axles plus any pusher axles, which are lift axles that drop to the road when the truck is loaded. Weight laws count every axle, steer included. So a tandem has 3 axles, a tri-axle 4, a quad 5 and a quint 6. In the survey, 90% of 4-axle dump trucks have one lift axle. (VIUS 2021)

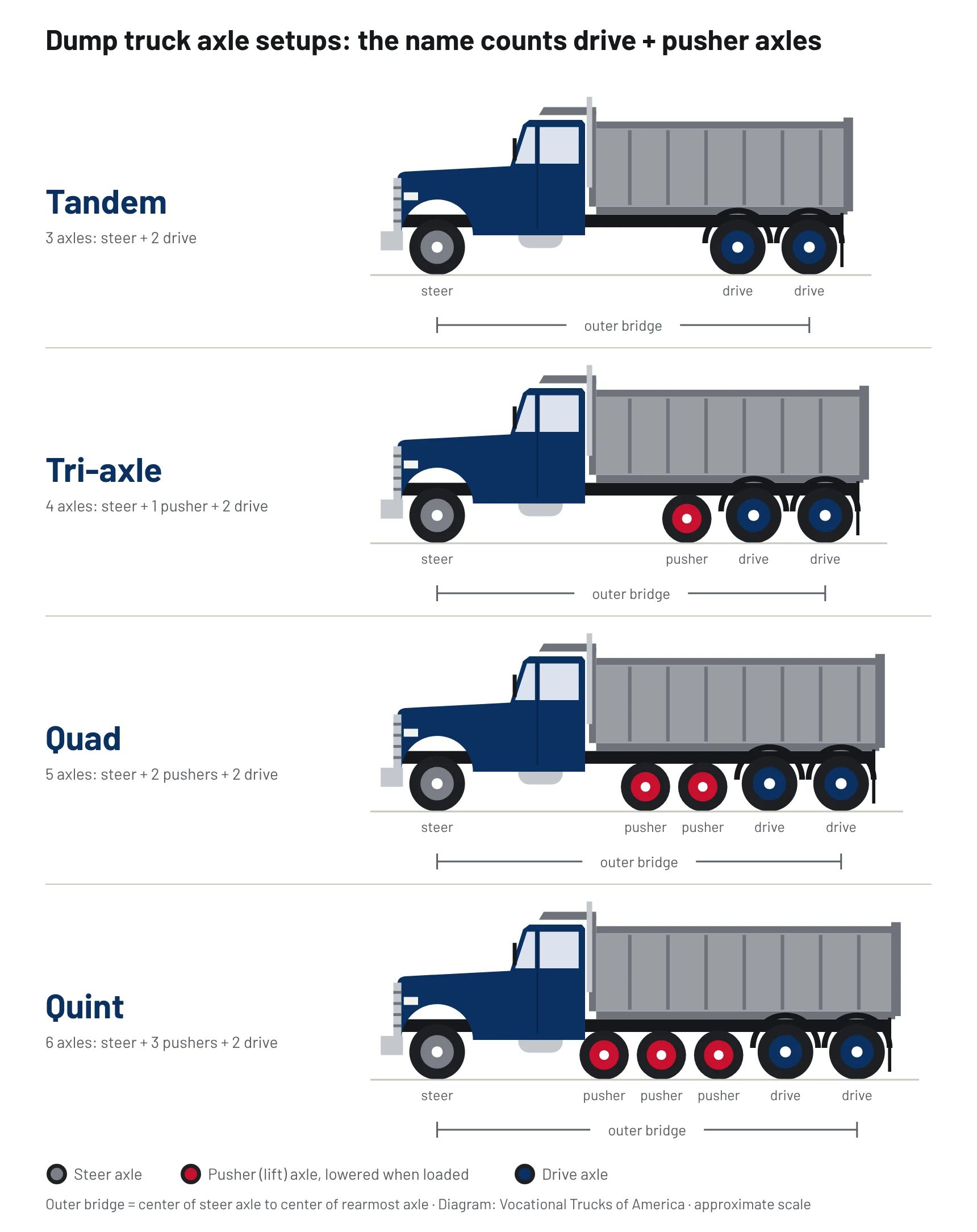

Side-view diagram of four dump trucks: a tandem with a steer axle and two drive axles, a tri-axle with one pusher axle, a quad with two pushers and a quint with three pushers, each with its outer bridge marked from the steer axle to the last axle — The outer bridge runs from the center of the steer axle to the center of the last axle. Diagram: Vocational Trucks of America.

How the weight limits work

Interstate: 20,000 lb per single axle, 34,000 lb per tandem and 80,000 lb gross, plus the federal Bridge Formula, which limits weight by the number of axles and how far apart they are. (23 CFR 658.17)
Older state limits: many states kept grandfathered Interstate limits. South Carolina adds its 10% enforcement tolerance there, which is why its tri-axles run about 60,500 to 61,000 lb on the Interstate. (FHWA; CRMCA)
State roads: each state sets its own rule. Some use an axle-spacing table, some give dump trucks a flat limit by axle count, and some cap the gross.
Payload: legal gross minus empty weight. A steel-body tri-axle in South Carolina typically weighs 25,000 to 30,000 lb empty, most around 26,000 to 27,000. A lift axle system weighs about 920 to 1,500 lb (Hendrickson); with wheels and tires, figure 1,300 to 1,900 lb.
What you get paid for: many quarries weigh every truck before it leaves and won’t release one over its legal limit. (Pit & Quarry)

Bridge Formula: W = 500 × ( LN ÷ (N − 1) + 12N + 36 )

W = pounds (to the nearest 500), L = outer bridge in feet, N = number of axles

South Carolina example: tri-axle vs. quad
Road	Tri-axle	Quad	Quad gains
State roads	69,850 lb gross, 21.7 tons payload	71,500 lb gross, 21.75 tons	About 150 lb
Interstate	About 60,500–61,000 lb, 17–17.25 tons	About 67,500–69,300 lb, 19.8–20.6 tons	About 3 tons
Federal limits only	55,500–56,000 lb, 14.5–14.75 tons	61,500–63,000 lb, 16.75–17.5 tons	About 2.5 tons

Tri-axle: 242–255 in outer bridge, 26,500 lb empty. Quad: 264–282 in, about 28,000 lb empty. The quad’s South Carolina Interstate figure is the Bridge Formula plus 10%.

The rules, state by state

Straight dump truck rules on state roads, checked October 2026
State	State-road rule	Quad vs. tri-axle	Status
South Carolina	Exempt from axle spacing; gross by axle count, 10% included: 4 axles 69,850, 5+ axles 71,500. Interstate: Bridge Formula plus 10%	About 150 lb	Law checked
Pennsylvania	Gross by axle count: 4 axles 73,280, 5 axles 73,280, 6 axles 77,000	Nothing	Law checked
Florida	Exempt from axle spacing; 20,000 lb per axle; 70,000 lb cap, tolerance included	Nothing	Law checked
Georgia	Aggregate and fresh concrete: 23,000 single, 46,000 tandem, 80,000 gross; lift axles don’t count toward gross	Little or nothing; tandems are most common	Law checked
Alabama	Exempt from axle spacing; gross capped by axle count: 4 axles 75,000, 5 axles 80,000; 10% tolerance	About 1.75 tons	Law checked
North Carolina	Axle-spacing table, +10% off the Interstate, 80,000 cap; +4,000 lb for soil, rock, sand or millings from a site with no scale	About 3 tons	Law checked
Mississippi	Axle-spacing table on designated highways	About 2.75 tons	Law checked
California	Federal-style table; 80,000 cap; limits include tolerances	Follows the table	Law checked
Virginia	Axle-spacing table on all highways, same as the federal values. Off the Interstate, a $250 permit adds 5% (84,000 max), and a $70 permit for gravel, sand, asphalt or crushed stone (85-mile limit) lets a 4-axle truck gross 70,000 lb	About 2.5 tons on the table. With the aggregate permit, a tri-axle can gross 70,000; the permit’s 5-axle tier needs 35 ft between end axles	Law checked
Texas	Bridge Formula on all public highways; 20,000 single, 34,000 tandem, 80,000; $90 annual tolerance permit adds 10% axle, 5% gross	About 2.5 tons	Law checked
Ohio	Off the Interstate, the higher of the Bridge Formula or 38,000 lb plus 900 lb per foot of outer bridge, 80,000 cap; +7.5% for minerals from a surface mine, hot mix asphalt and fresh concrete	About 2 tons	Law checked
New York	All highways: 22,400 single, 36,000 tandem, 80,000; Bridge Formula, or 34,000 lb plus 1,000 lb per foot if higher and under 71,000 lb	About 2.5 tons	Law checked
Tennessee	Off the Interstate: no Bridge Formula; 20,000 single, 34,000 per tandem group (axles 40–96 in apart), 80,000; building materials aren’t cited for axle weight if the gross is within the total allowed; 10% margin for sand, clay, shale and some other loads	Unclear: depends on whether a pusher counts in the tandem group; reports wanted	Needs a second look
Michigan	No set gross on most state roads in the normal season: 13,000 lb per axle 3.5–9 ft apart, 18,000 lb 9+ ft apart, 700 lb per inch of tire; 80,000 cap on the Interstate and designated highways	Each closely spaced axle adds up to 13,000 lb	Needs a second look

“Law checked” means we read the state’s law and turned it into numbers; Georgia was also confirmed by our editor. “Needs a second look” means a key point is still unclear for dump trucks: in Tennessee, whether a pusher counts as part of the tandem group; in Michigan, which roads are designated and the steer-axle limit. Sources are listed at the end. Tell us what your state allows, or ask your state trucking association.

Is one more axle worth it?

On ton-rate work, which covers most aggregate hauling, every extra ton pays. Dirt and asphalt are usually paid by the hour, and a bigger truck earns more only if the job pays more for it.

Cycle time. A 12-mile haul is 24 miles round trip. At 2.25 minutes a mile (trucks run slower than a map app says), that’s 54 minutes. Add 15 to load and dump: 69 minutes.
Loads per day. A pit open 10 hours gives 600 minutes, or 8.7 cycles. With a stop and lunch, it’s an 8-load day. Always round down.
Rate per ton. To earn $1,500 a day with 21-ton loads: $1,500 ÷ (8 × 21) = $8.93 a ton.
The extra tons. On a South Carolina Interstate route, a quad hauls about 3 tons more a load: 24 more tons a day, or $214.32. Over 200 working days, that’s $42,864 a year before tires and upkeep, enough to pay back an $18,000 to $25,000 axle in well under a year. On South Carolina state roads, the same quad earns almost nothing extra.

Run your own numbers

The free calculator compares two trucks on the Interstate and your state’s roads, then shows loads per day, rate per ton and payback.

Open the Calculator

Spec checklist before you buy

Outer bridge. Measure center of the steer axle to center of the last axle. Typical South Carolina trucks: 242–255 in for a tri-axle, 264–282 in for a quad.
Axle and tire ratings. The steer axle, pushers and every tire must be rated for the load they carry.
Lift axles. Steerable or not, how they lift for turns and backing, and how your state counts them.
Body. Steel for dirt, debris and aggregates, including riprap. Aluminum for plant stockpiling and asphalt.
Ask first. Check with your state DOT and the scale houses you load at before you order.

Longer bodies and more axles also raise tip-over risk on uneven ground or when a load sticks or shifts, and aluminum bodies flex more than steel. See dump-site safety in the Construction & Dump guide.

Crew field reports

Help us map your state

Weight rules change from state to state, and from the Interstate to state and county roads. VTA is building a dump truck weight guide for all 50 states, and the people at the scales know the rules best. Tell us what is allowed where you haul. We check every report against the law and other reports before anything goes on the site, and we don’t publish your name or company unless you say so.

StateType of roadTruckLegal gross allowed (lb)Outer bridge (inches) (optional)Empty weight (lb) (optional)Most common setup where you haul (optional)Where that number comes fromYour name (optional)Email (use your Crew email if you have one)Anything else (optional: permits, seasonal limits, how lift axles are counted, county rules)You can email me with questions about this report.You can credit my company by name when you publish this report.

Not a member yet? Join the Crew free. See our privacy policy.

Dump truck axle FAQ

What is a tri-axle dump truck?

A tri-axle dump truck has a steer axle, two drive axles and one pusher (lift) axle, 4 axles in all. Buyers name dump trucks by the axles behind the cab, so a tri-axle is “three” even though weight laws count all 4.

How much can a tri-axle dump truck haul?

It depends on the state and the road. With a typical 26,500 lb empty weight, a South Carolina tri-axle can haul about 21.7 tons on state roads and about 17 tons on the Interstate. Under federal limits alone, a tri-axle with a 242 to 255 inch outer bridge hauls about 14.5 to 14.75 tons.

How much does a tri-axle dump truck weigh?

A steel-body tri-axle dump truck typically weighs 25,000 to 30,000 lb empty, and 26,000 to 27,000 lb is common in South Carolina. Aluminum bodies weigh less. Each added lift axle adds about 1,300 to 1,900 lb.

How much can a quad axle dump truck haul?

Under federal Interstate limits, a quad with a 264 to 282 inch outer bridge grosses 61,500 to 63,000 lb, about 16.75 to 17.5 tons of payload at 28,000 lb empty. South Carolina allows about 67,500 to 69,300 lb on its Interstates. On state roads, a quad hauls anywhere from no more than a tri-axle (Pennsylvania, Florida) to about 3 tons more (North Carolina).

Tri-axle vs. quad axle dump truck: which should I buy?

Buy the quad if your loads use the Interstate often or your state’s road rules reward more axles, as in North Carolina, Mississippi, Alabama, Ohio, Texas, Virginia and New York. In South Carolina, Pennsylvania, Florida and Georgia, a quad hauls little or nothing more on state roads, so a tri-axle is usually the better buy.

What is the difference between a tandem and a tri-axle dump truck?

A tandem has a steer axle and two drive axles. A tri-axle adds one pusher axle, which raises the legal gross: in South Carolina, from 50,600 lb to 69,850 lb on state roads. Tandems are lighter, cheaper and turn tighter, and they are the most common heavy dump truck in many states, including Georgia.

What is a quint axle dump truck?

A quint has 6 axles: a steer axle, two drive axles and three pusher axles. It pays off where every axle adds legal weight. In South Carolina, a quint gets the same 71,500 lb state-road limit as a quad.

What is the most common dump truck configuration?

Nationally, the 2021 Vehicle Inventory and Use Survey shows heavy dump trucks split about evenly between single-axle and tandem trucks, about 32% each, with tri-axles at 26% and trucks with 5 or more axles at 11%. The mix varies by state: 68% of Georgia’s are tandems, while 36% of Virginia’s run 5 or more axles.

How many yards does a tri-axle dump truck hold?

For heavy loads, weight sets the limit before the body fills. Divide the truck’s legal payload by the material’s weight per cubic yard, which your supplier can give you. Gravel, stone and riprap usually reach the legal weight before the body is full.

What is the bridge law for dump trucks?

Bridge laws limit a truck’s weight by how many axles it has and how far apart they are. The federal Bridge Formula, W = 500(LN/(N − 1) + 12N + 36), uses the outer bridge: the distance from the center of the steer axle to the center of the last axle. More axles and a longer outer bridge allow more weight.

Do lift axles count toward a dump truck’s legal weight?

It depends on the state. Georgia’s law says no lift axle may be used in computing the maximum gross weight. Before you spec a pusher, ask your state DOT how a lowered lift axle is counted on state roads and on the Interstate.

How do you figure the rate per ton for a short haul?

Figure the cycle: one-way miles × 2 × about 2.25 minutes a mile, plus 15 to 20 minutes to load and dump. Divide the pit’s open minutes, less stops and lunch, by the cycle and round down. Then divide the daily revenue goal by loads × tons. A 12-mile haul is a 69-minute cycle and 8 loads; $1,500 ÷ (8 × 21 tons) is $8.93 a ton.

How much does it cost to add an axle to a dump truck?

A steerable lift axle typically costs $10,000 to $14,000 before installation. With the air controls, a factory frame extension and a longer body, adding one usually runs $18,000 to $25,000. It adds about 1,300 to 1,900 lb of empty weight, and its tires cost about $550 to $850 each.
